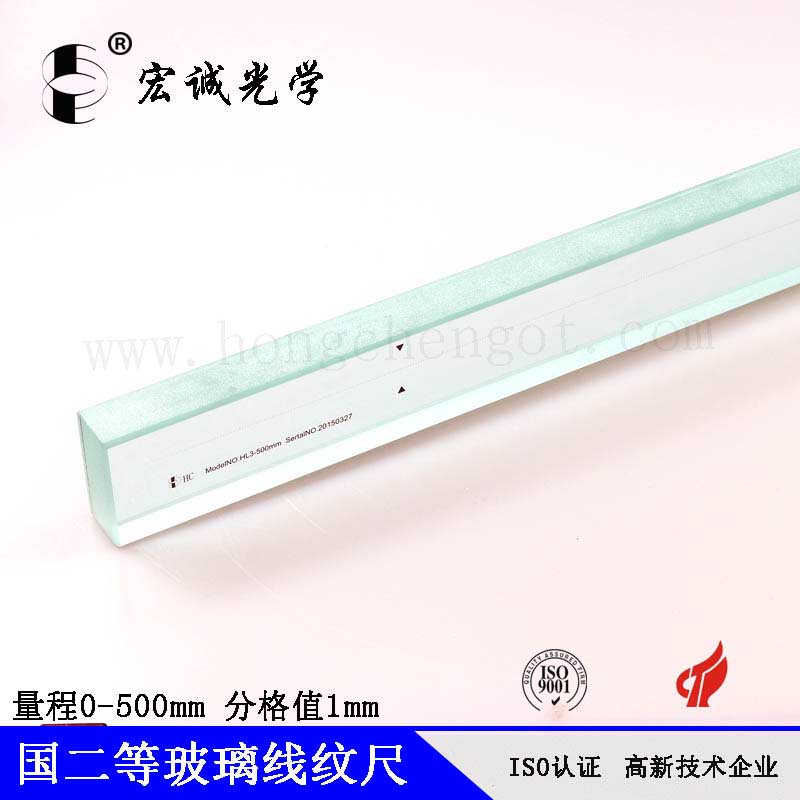

Name：0-500mm National level standard glass scale The normal standard glass scale

Application

The working standard glass scale is used as an optical component for measuring and calibrating in length measuring tools such as length measuring instrument, length measuring machine, universal tool microscope and universal measuring machine. In the coordinate boring machine, coordinate grinder and other precision machine tools as a positioning element standard glass scale for measuring or positioning, and reading microscope, optical reading head or photoelectric microscope, etc. The ruler film used for tool microscope faces down and is engraved on the back of the ruler.

Basis of production and testing regulations: JJG73-2005 (verification regulations for standard glass scale)

——The specifications of normal standard glass scale are as follows:

Model	Length(mm)	Width(mm)	Thickness(mm)	Division Value	Accuracy(um)
HBL01—100	130	30	5	0.1mm,0.5mm,1mm	1
HBL01—200	230	30	5	0.1mm,0.5mm,1mm	1
HBL01—300	330	30	5	0.1mm,0.5mm,1mm	1
HBL01—400	430	30	5	0.1mm,0.5mm,1mm	1
HBL01—500	530	30	5	0.1mm,0.5mm,1mm	1
HBL01—600	630	30	5	1mm	3
HBL01—700	730	30	5	1mm	3
HBL01—800	830	30	5	1mm	5—8
HBL01—1000	1030	30	5	1mm	8—10

The above specification are commonly used specifications, other models can be customized.

· ——The specification of National level standard glass scale is as follows:

Model	Length(mm)	Width(mm)	Thickness(mm)	Division Value	Accuracy(um)
HBL01—1-GB	46	30	5	0.01mm	1
HBL01—10-CB	46	30	5	0.01mm	1
HBL01—100-CB	130	30	10	1mm	1
HBL01—200-CB	230	30	10	1mm	1.5
HBL01—300-CB	330	30	15	1mm	2.5
HBL01—400-CB	430	30	15	1mm	3
HBL01—500-CB	530	30—35	15—25	1mm	3.5
